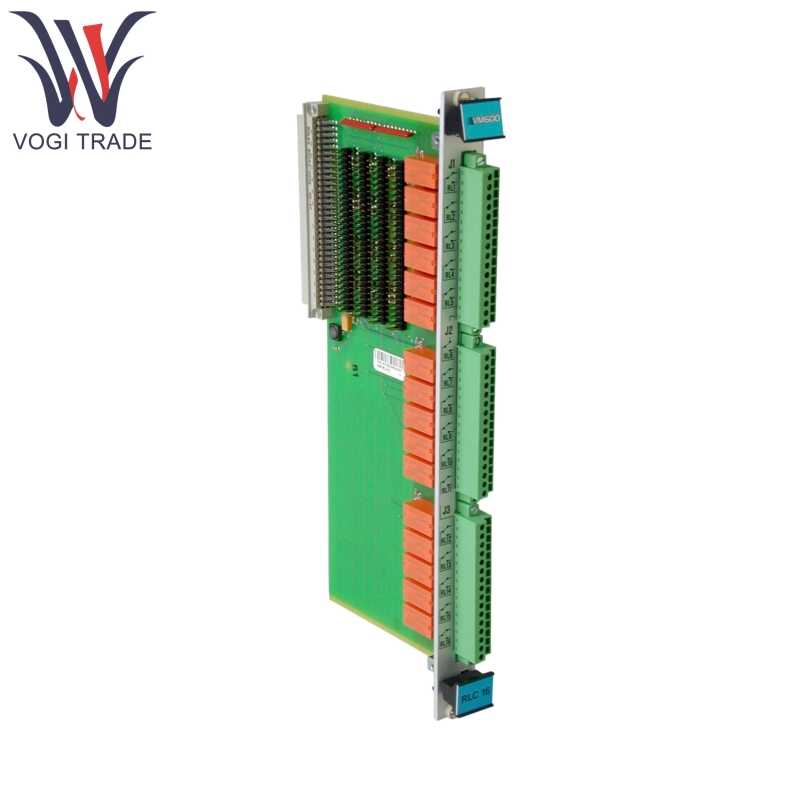

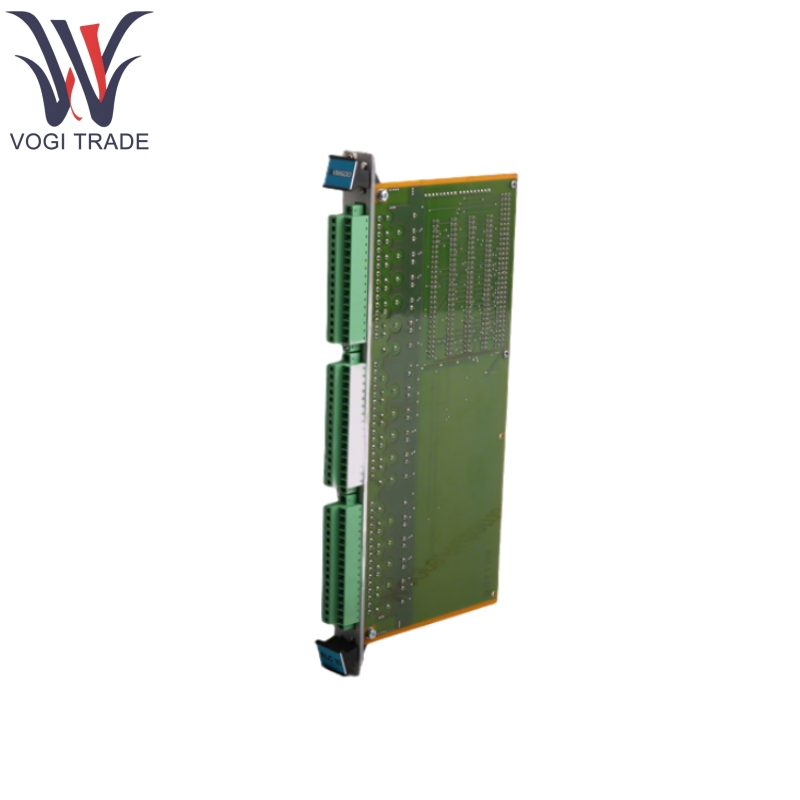

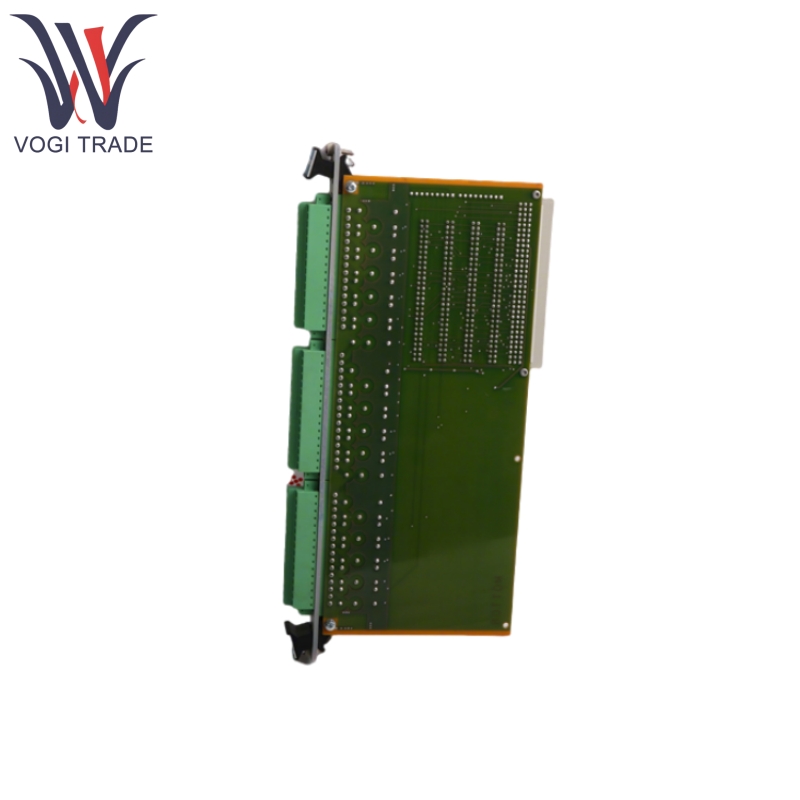

RLC16 200-570-000-111

Product Specifications

RLC16 200-570-000-111 is installed in the rear of a VM600 rack (ABE04x or ABE056) and connects directly to the rack backplane via a single connector.

RLC16 200-570-000-111 contains 16 relays with change-over contacts. Each relay is associated with 3 terminals on a screw-terminal connector accessible at the rear of the VM600 rack.

RLC16 200-570-000-111 is controlled by open-collector drivers under software control. Jumpers on the RLC16 card allow the selection of relay normally energized (NE) or normally de-energized (NDE).

Product Features

Relay card with screw-terminal connectors

Relay driver inverter logic (jumper selectable)

16 relays with change-over contacts

Low contact resistance

Low capacitance

High through power

Live insertion and removal of cards (hot-swappable)

Conforms to EC standards for EMC

Product Parameters

Characteristics Information:

Presentation-16 relay PCB

Relay state-Normally energized or normally de-energized (jumper selectable)

External connections-Screw-terminal connectors (J1, J2 and J3)

Mounting-Installs in the rear of a VM600 rack and connects to the rack’s backplane via a connector

Connectors types:

J1: 16-contact screw-terminal connector. Outputs (contacts) for relays RL1 to RL6.

J2: 16-contact screw-terminal connector. Outputs (contacts) for relays RL6 to RL11.

J3: 16-contact screw-terminal connector. Outputs (contacts) for relays RL11 to RL16.

Power Supply:

Power source: VM600 rack power supply

Supply voltage: +5 VDC

Consumption: 40 mA × 16 (per relay)

Environment Condition:

Temperature

Operating: −25 to 65°C (−13 to 149°F)

Storage: −40 to 85°C (−40 to 185°F)

Humidity

Operating: 0 to 90% non-condensing

Storage: 0 to 95% non-condensing
