Işınlı Nevada 82366-01

Ordering Information

Part Number: 82366-01

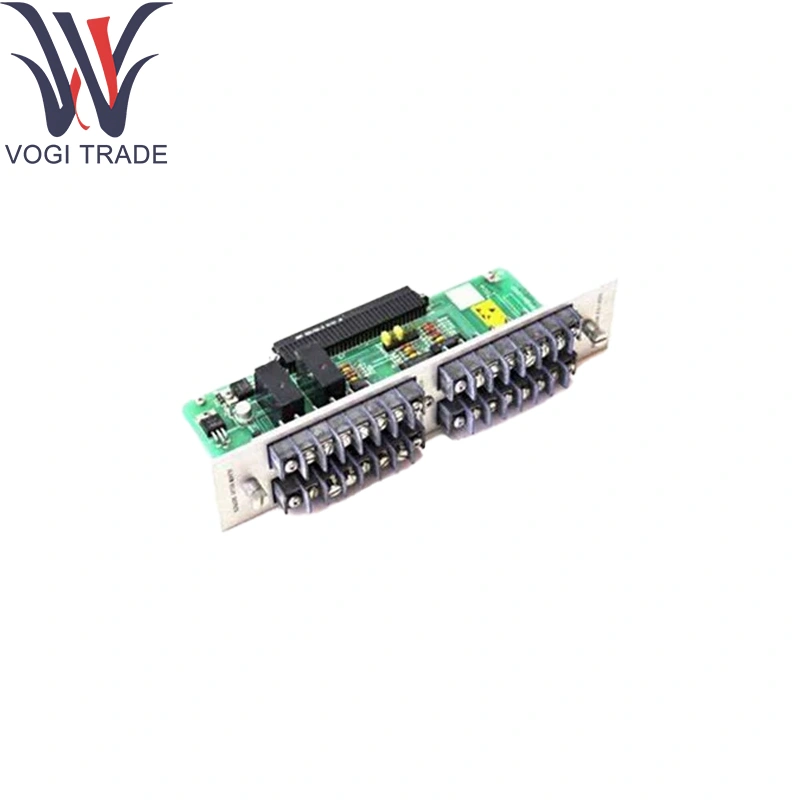

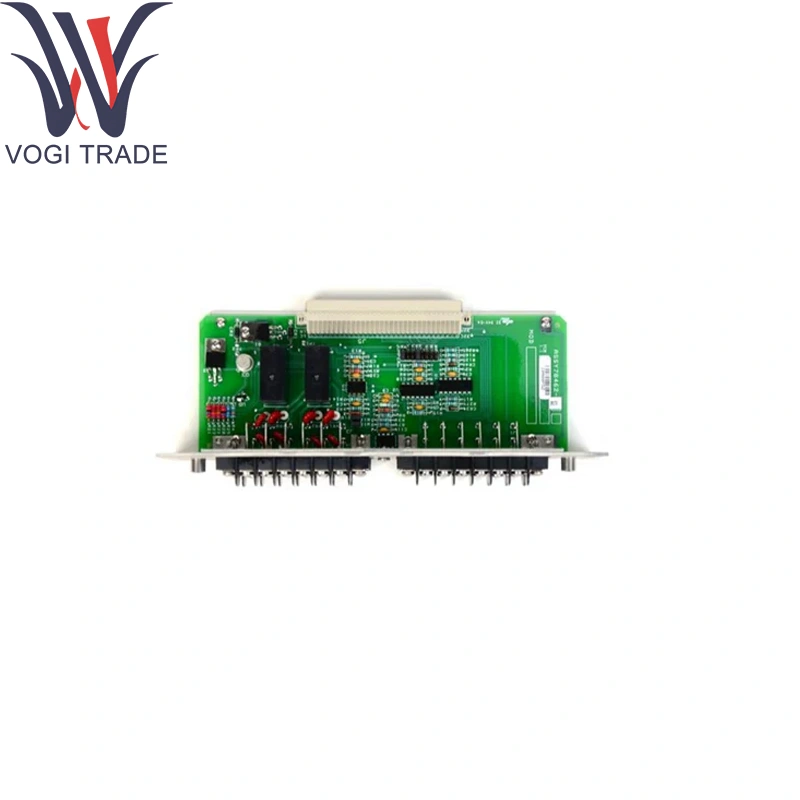

Description: High-density relay output module for Bently Nevada I/O racks

Series Compatibility: 3500 Series and legacy 2300/3300 shelves (via adapter)

Accessory Kits:

Ribbon-cable harness: 106765-13

Front-panel overlay: 3500/65-FP-OVR

Technical Parameters

Relay Channels: 8 × Form C (SPDT) contacts for Bently Nevada 82366-01

Contact Ratings:

5 A @ 250 VAC (resistive)

5 A @ 30 V DC (resistive)

Coil Drive: Solid-state drive via rack bus; no external coil supply

Operate/Release Time: ≤ 10 ms from command to contact change

Dielectric Withstand: 1 kV between coil/contacts and across channels in Bently Nevada 82366-01

Indicators: Front-panel LED per channel showing energized state

Electrical Interface: 50-pin ribbon header to monitor-module relay-drive outputs

Power Consumption: 24 V DC via backplane, ≤ 3 W

Environmental:

Operating Temp: 0 °C – 70 °C

Storage Temp: –40 °C – 85 °C

Humidity: ≤ 95 % RH, non-condensing

Product function

Bently Nevada 82366-01 executes discrete output switching by energizing external circuits in response to trip/alarm commands. The high-density design provides eight relay outputs in a ¼-rack slot with self-diagnostics for coil/contact faults.

Application Areas

Power Generation: Driving trip solenoids and alarm circuits using Bently Nevada 82366-01

Process & Petrochemical Plants: Integrating alarms into ESD systems

Compressor Stations: Surge-control status outputs with Bently Nevada 82366-01

OEM Skid Packages: Embedded relay outputs in panels featuring Bently Nevada 82366-01

Marine & Offshore: Corrosion-resistant alarm/shutdown relays
